SRAM RED AXS E1 Road Groupset

description

SRAM's current-generation (E1) RED AXS wireless electronic road groupset with hydraulic disc brakes, built here from SRAM's individual components. Choose 2x or 1x, with or without the RED AXS power meter crankset.

What's included

Every configuration:

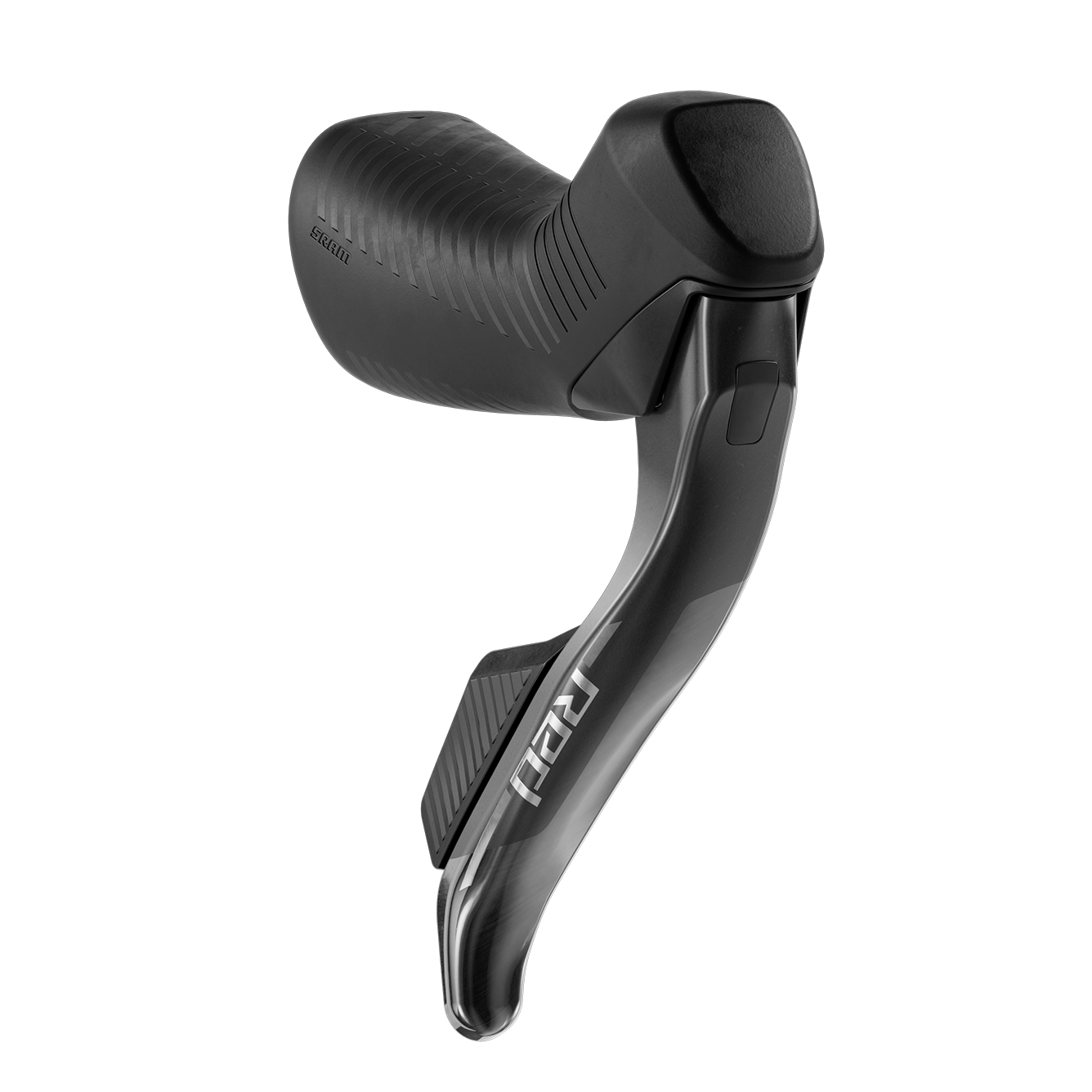

2 x RED AXS HRD Shift-Brake System, lever with hydraulic caliper (ED-RED-E1) - $745.00 each = $1,490.00 (left/front and right/rear; SRAM prices each side separately)

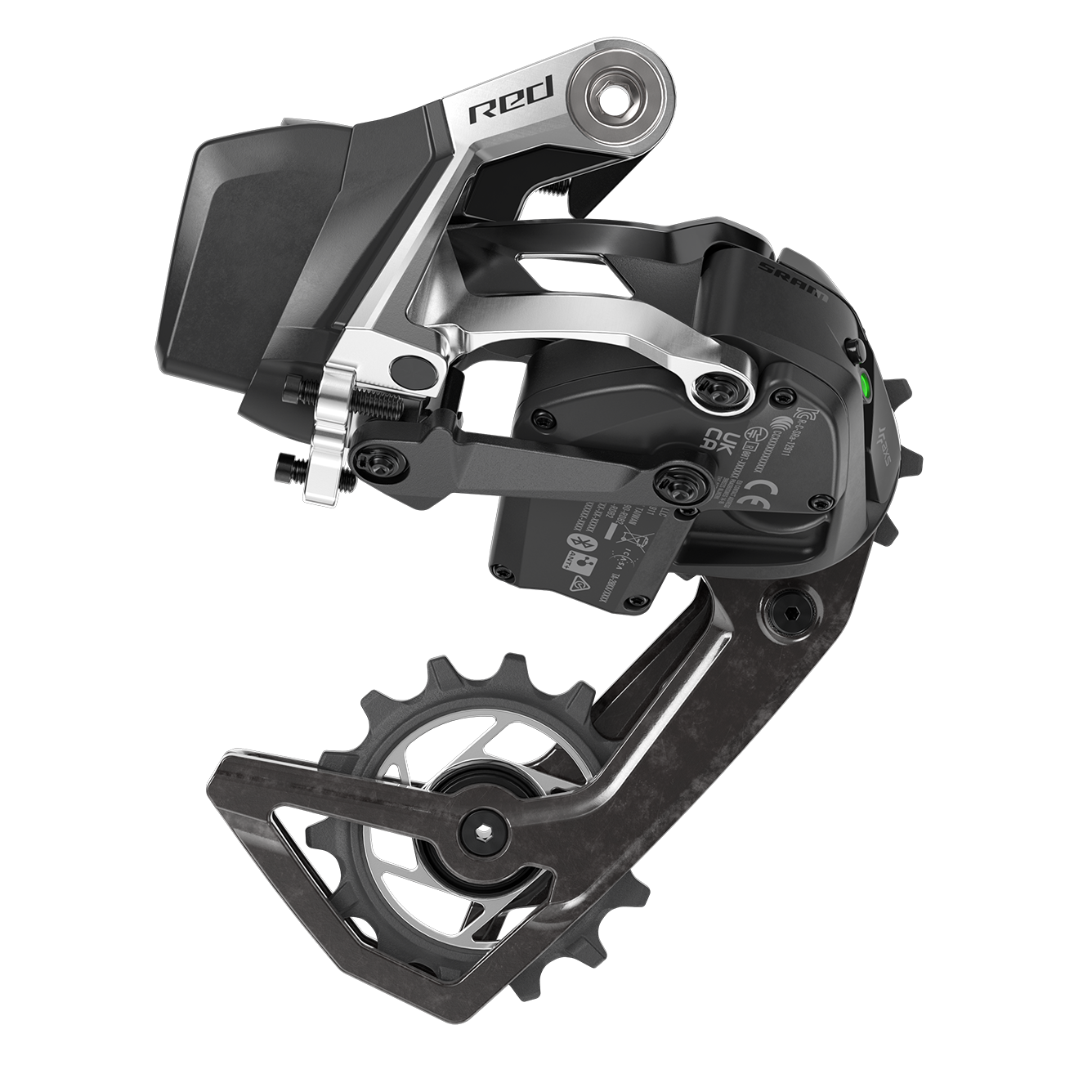

1 x RED AXS Rear Derailleur, 36T max (RD-RED-E-E1) - $770.00

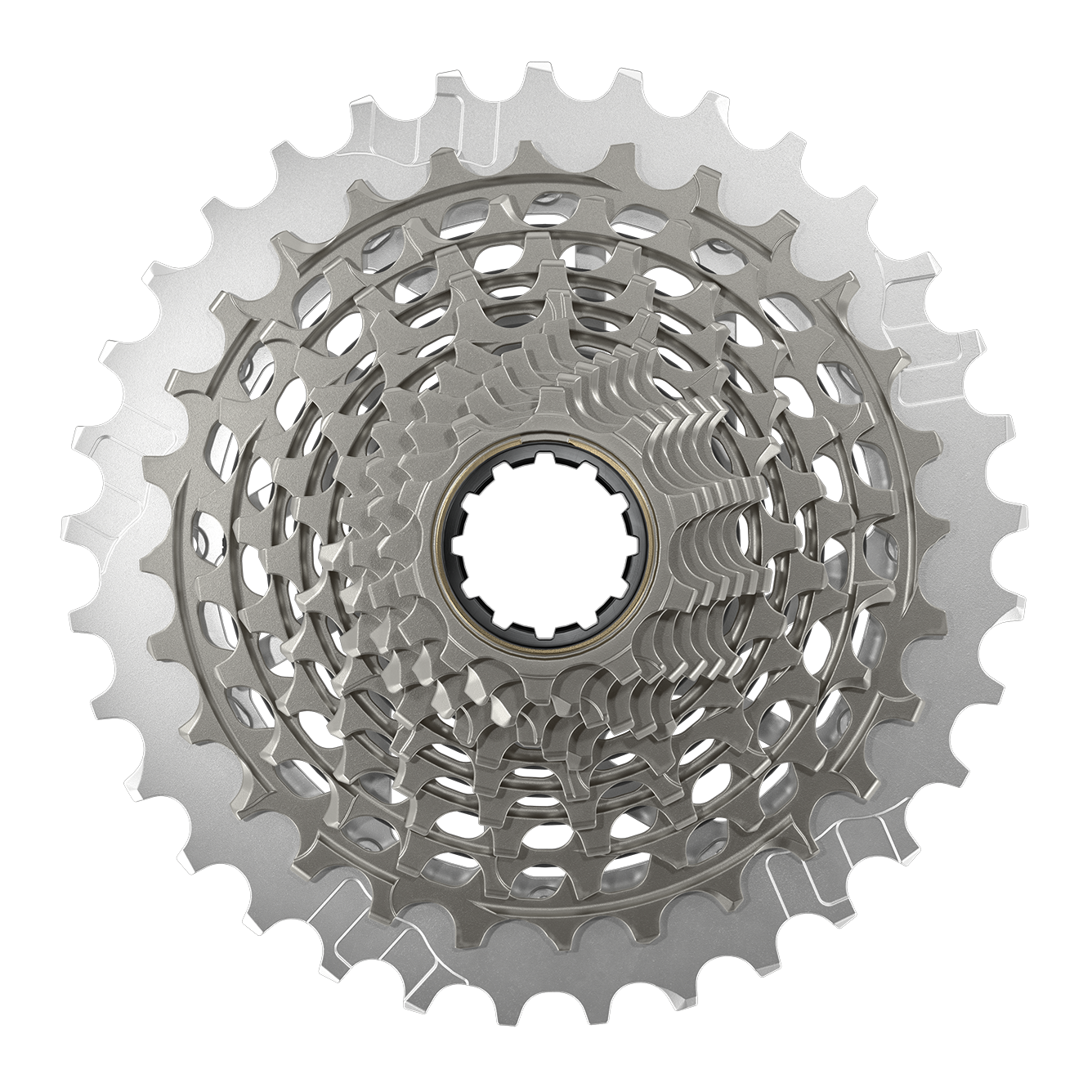

1 x RED XG-1290 Cassette, silver (CS-XG-1290-E1) - $430.00 (10-28T, 10-30T or 10-33T at $430.00; 10-36T at $450.00. SRAM lists the XG-1290 at $430-$515 depending on range and finish; we quote the standard silver finish)

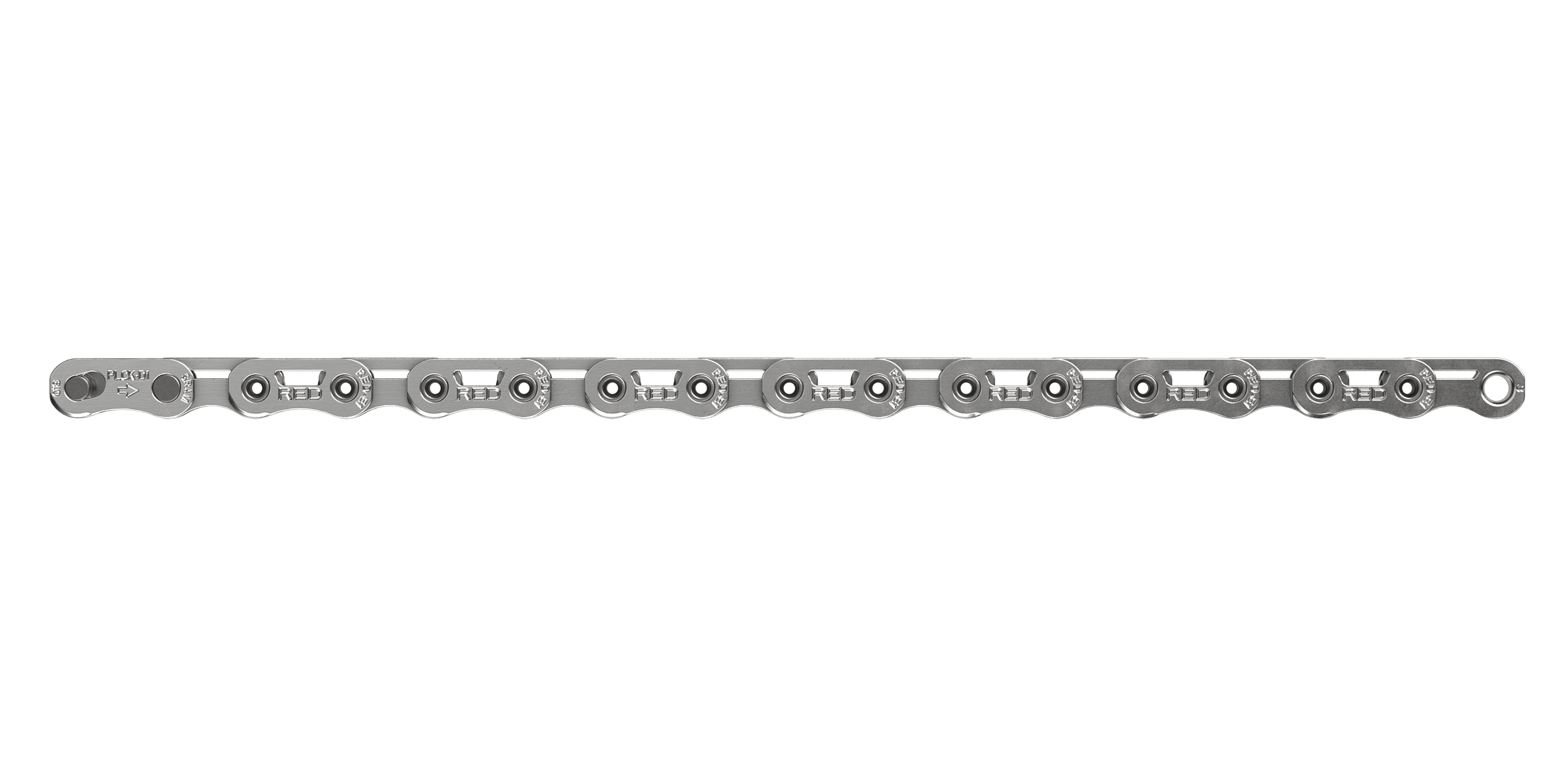

1 x RED Chain, 114-link (CN-RED-E1) - $110.00 (base version, low end of SRAM's $110-$120 listing; ask us if your frame needs the 126-link chain)

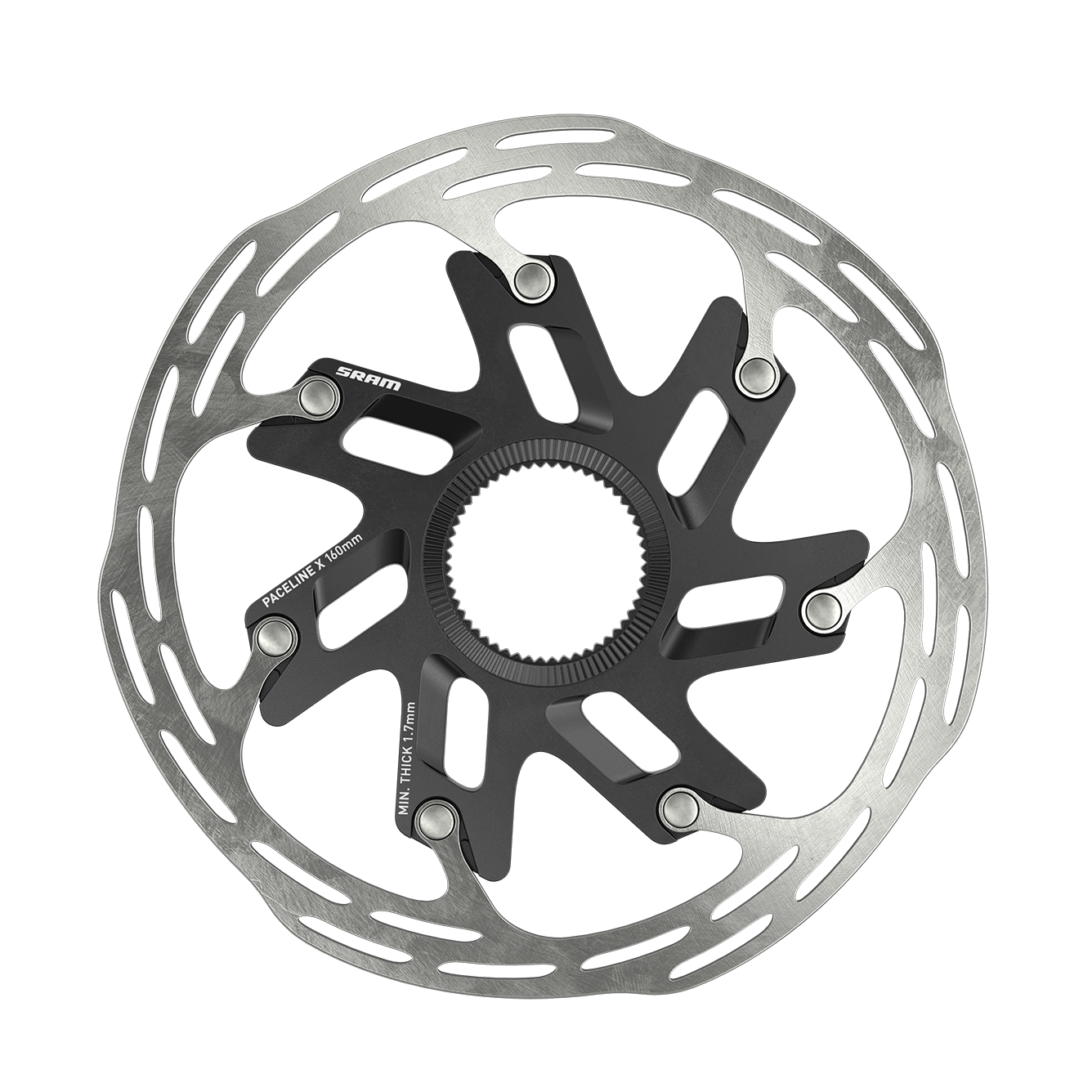

2 x Paceline X Rotor, 160mm Center Lock (RT-PLN-X-A1) - $75.00 each = $150.00 (SRAM's recommended RED rotor; 140mm available on request)
1 x AXS Battery Charger (EP-EAC-BC-A1) - $55.00

2x adds:

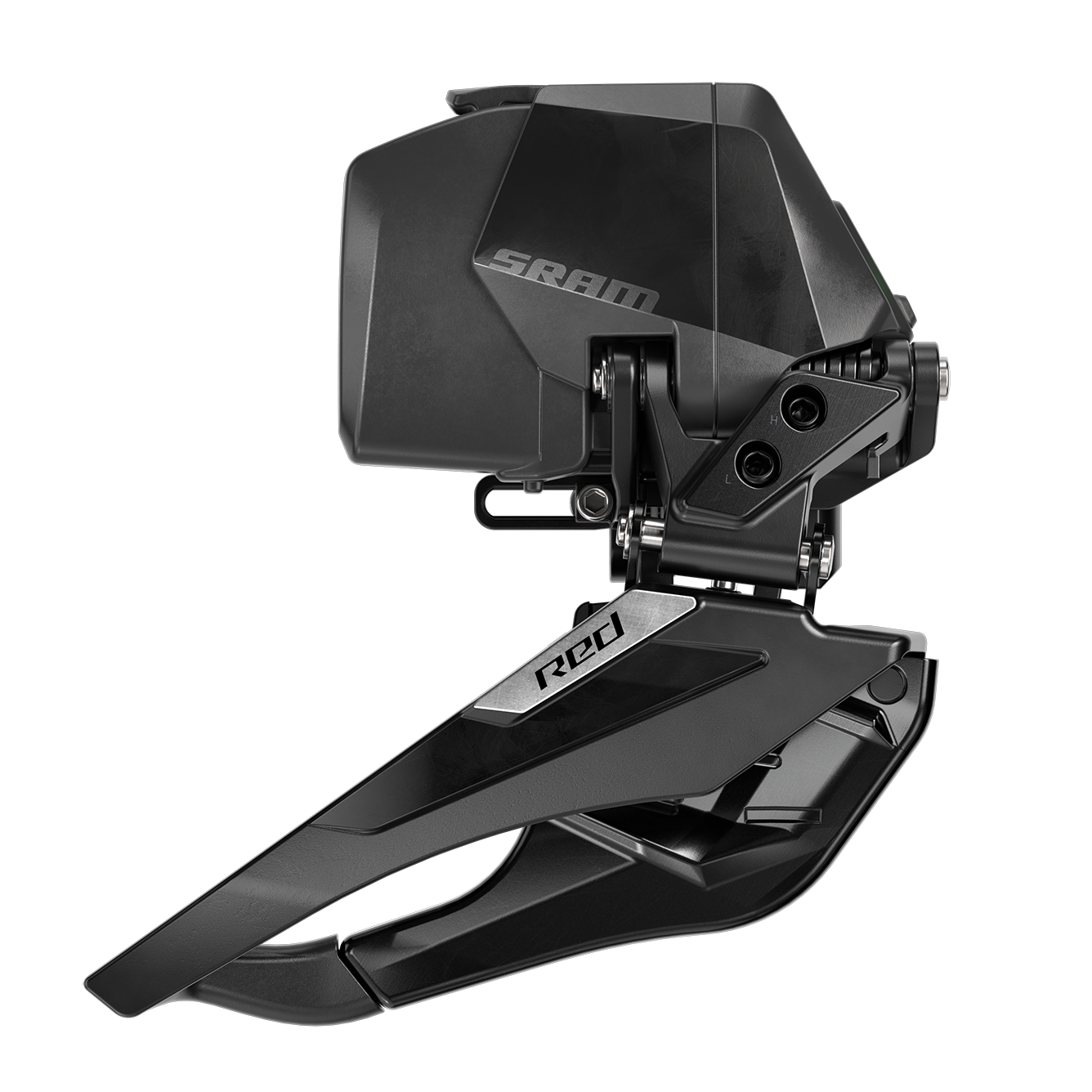

1 x RED AXS Front Derailleur (FD-RED-E-E1) - $495.00

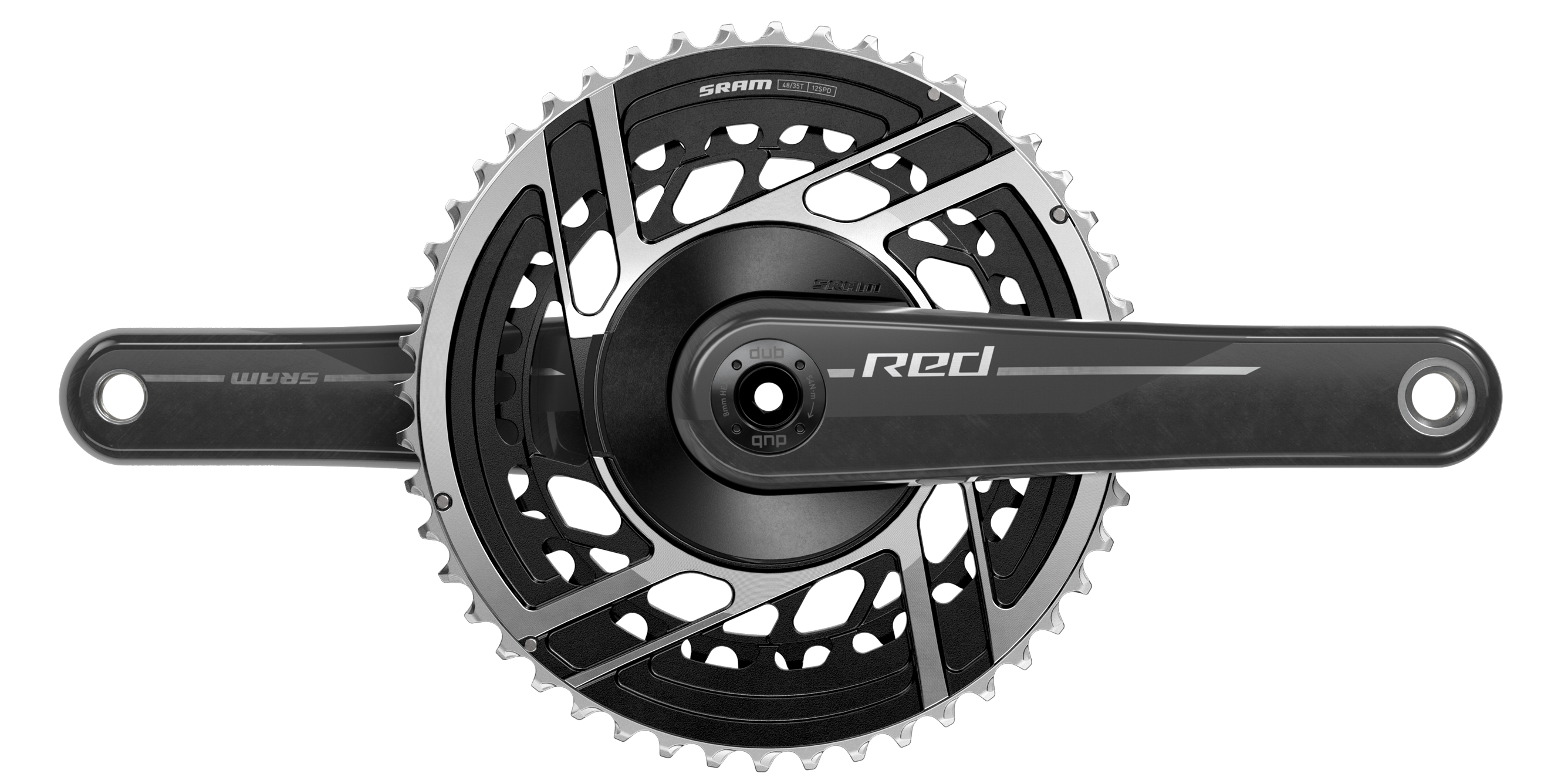

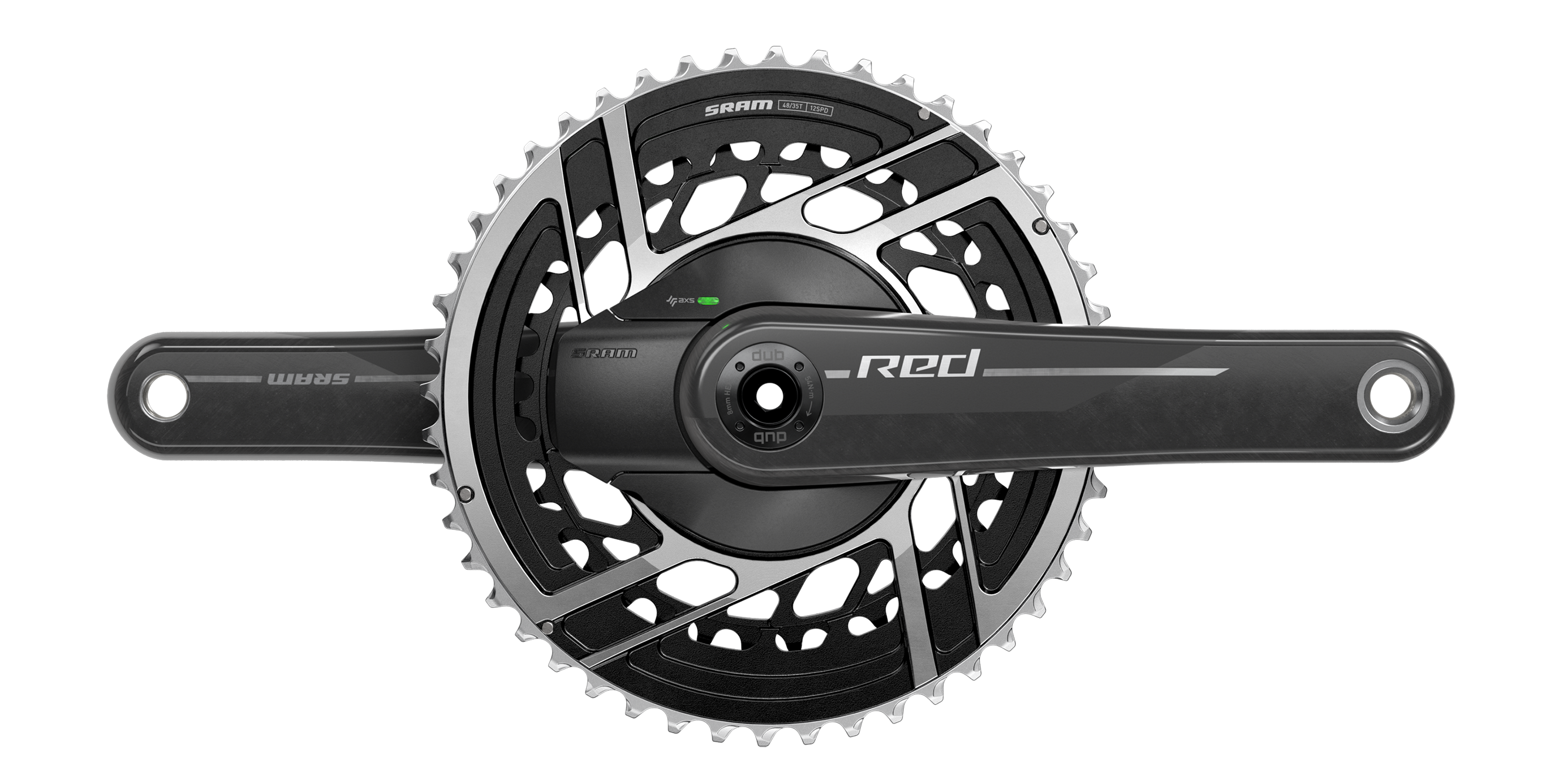

1 x RED Crankset, 2x (FC-RED-E1) - $770.00 (or RED AXS Power Meter crankset FC-RED-P-E1 - $1,320.00)
2 x AXS Battery (rear + front derailleur) (EP-EAC-BAT-A1) - $65.00 each = $130.00

1x adds:

1 x RED 1 Crankset (FC-RED-1-E1) - $770.00 (or RED 1 AXS Power Meter crankset FC-RED-1P-E1 - $1,320.00)
1 x AXS Battery (rear derailleur) (EP-EAC-BAT-A1) - $65.00

Price math (10-28T/10-30T/10-33T cassette):

2x, no power meter: $1,490 + $495 + $770 + $770 + $430 + $110 + $150 + $130 + $55 = $4,400.00
2x, power meter: $4,400 - $770 + $1,320 = $4,950.00
1x, no power meter: $1,490 + $770 + $770 + $430 + $110 + $150 + $65 + $55 = $3,840.00
1x, power meter: $3,840 - $770 + $1,320 = $4,390.00
10-36T cassette adds $20.00 to any configuration.

Not included:

Bottom bracket (SRAM DUB road BB, sold separately), rotor lockrings if your hubs need them, hoses/cables beyond what ships with the levers, and installation.

Specifications

Generation: RED AXS E1 (current)
Speeds: 12
Shifting: SRAM AXS wireless electronic
Brakes: Hydraulic disc, flat mount
Chainrings (2x): 50/37T, 48/35T or 46/33T - tell us your choice after ordering (same price)
Chainrings (1x): Choose your size after ordering (same price); we confirm availability
Crank lengths: 165, 170, 172.5, 175mm listed; 160 and 167.5mm (and other lengths SRAM offers) available by request
Cassette ranges: 10-28T, 10-30T, 10-33T, 10-36T (XDR driver body required)
Rear derailleur: 36T max cog, works with 1x and 2x
Crank spindle: DUB
Power meter option: RED AXS power meter crankset (spindle-based integrated power)

Specs, photos and pricing are from SRAM's website. Manufacturers can change specs without notice; ask us to confirm compatibility before you order.

How ordering works

In-store pickup. Orders are picked up at Narrow Path Cycles, 980 Rowland Street, Clarkston, GA. If you need your order delivered somewhere else, contact us first; any shipping you arrange is at your own cost.
Subject to availability. Parts are ordered from the manufacturer or distributor, and every order is subject to availability. Items can be delayed, backordered or discontinued. We'll contact you after you order to confirm availability and timing.
Installation. Ask us about installation and compatibility with your bike; installation is quoted separately.
Restocking fee. Returns are subject to a restocking fee, depending on what the manufacturer allows us to return. Special-order items may not be returnable.
Pickup verification. Bring a photo ID and the card used for your order when you pick up.
